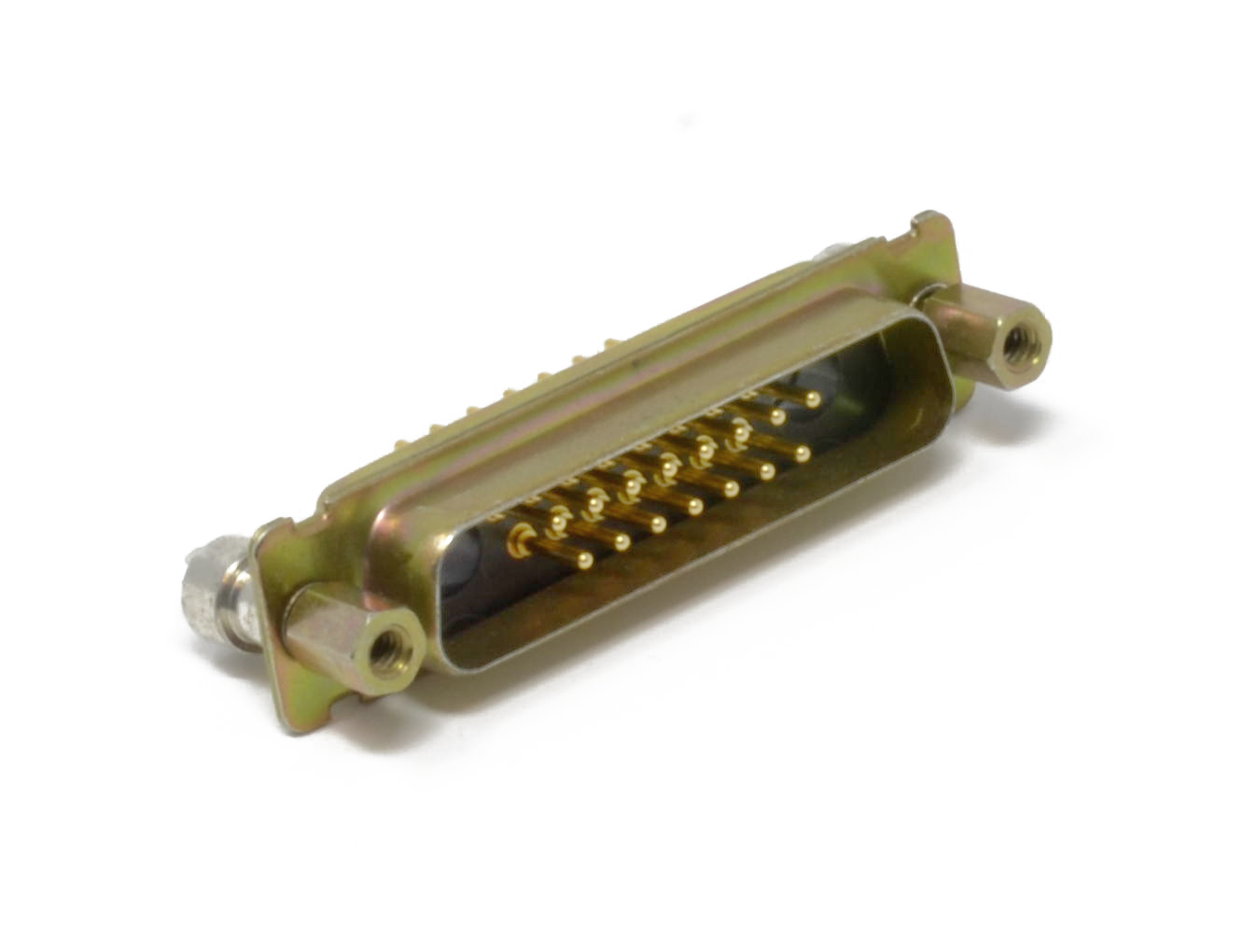

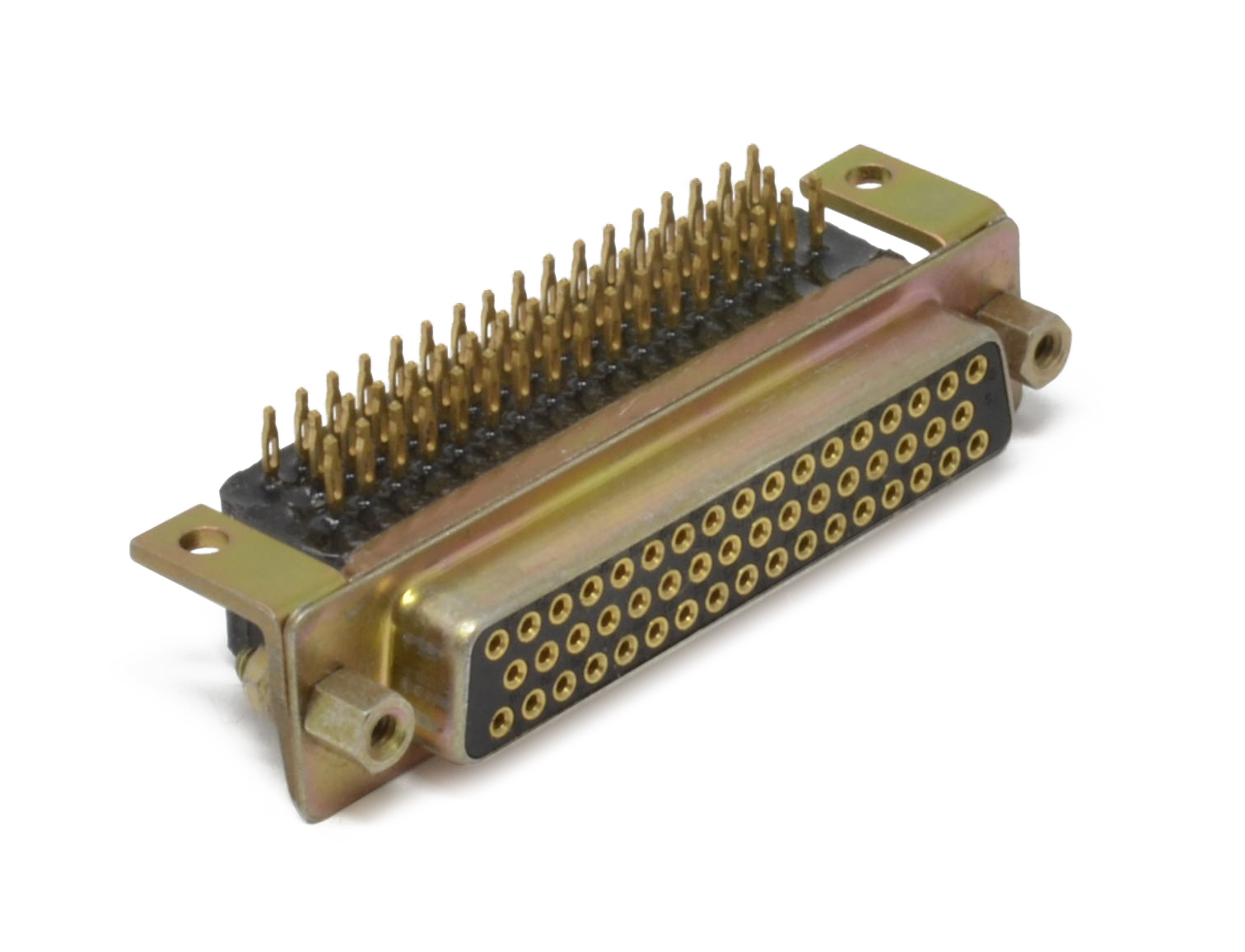

| Industry # | MIL-DTL-24308 Class G (/1, /2, /3, /4, /23 & /24 ) |
| Shape | D Shape |
| Shell Style | Panel, PCB or cable mounted |
| Durability | 500 Mating Cycles |
| Contact Style / Termination | Solder, Crimp |
| Operating Voltage | 1700 VAC |
| Current Rating | 40A |
| Number of Signal Contacts (Min/Max) | 9, 15, 25, 37, 50 and 15, 26, 44, 62, 78 (High Density) |
| Gauge Wire Size | 18-28 |
| Shell | Aluminum Alloy/Zinc Alloy |
| Shell Plating |
Cadmium, Stainless Steel, Zinc |
| Insulator | Thermoplastic, PCT UL 94V-0 |
| Contact | Copper alloy |
| Contact Plating | Gold over Nickel |
| Sealing | Not Available |
| Operation Temperature | -55°C to +150°C |
